Description

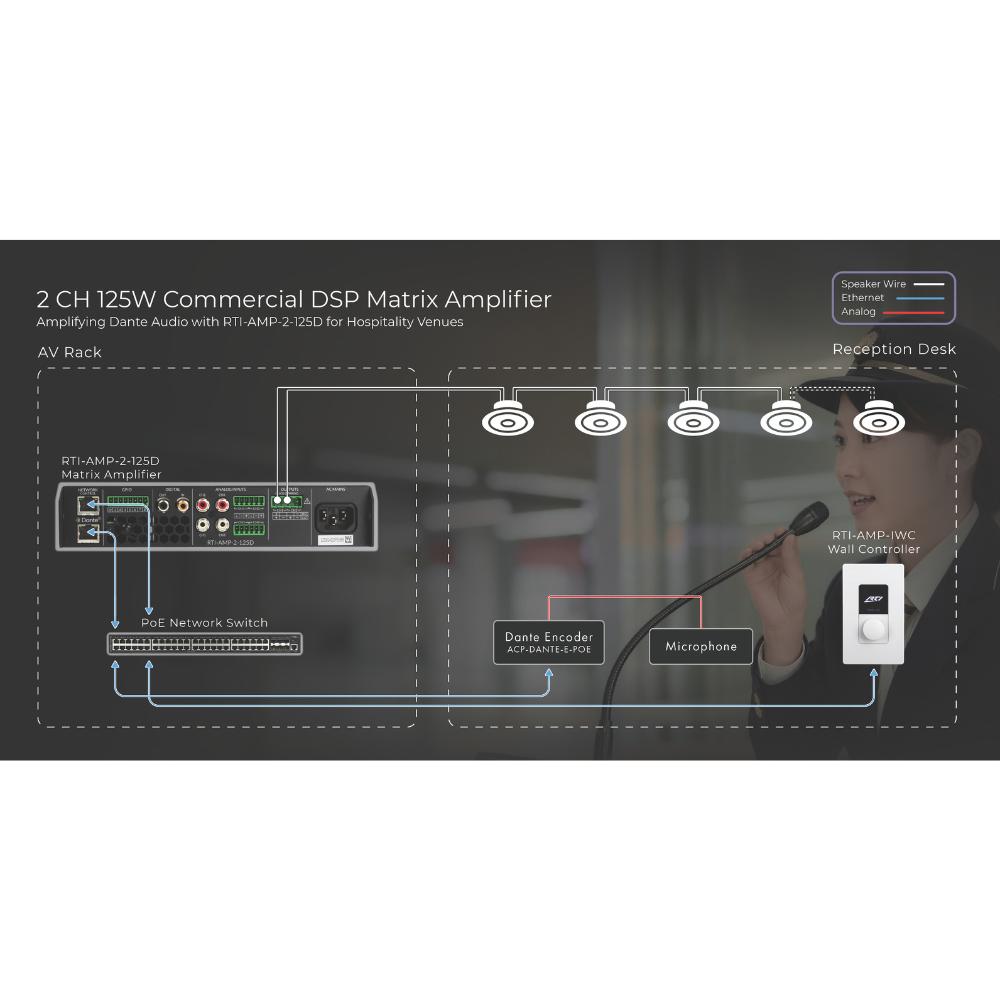

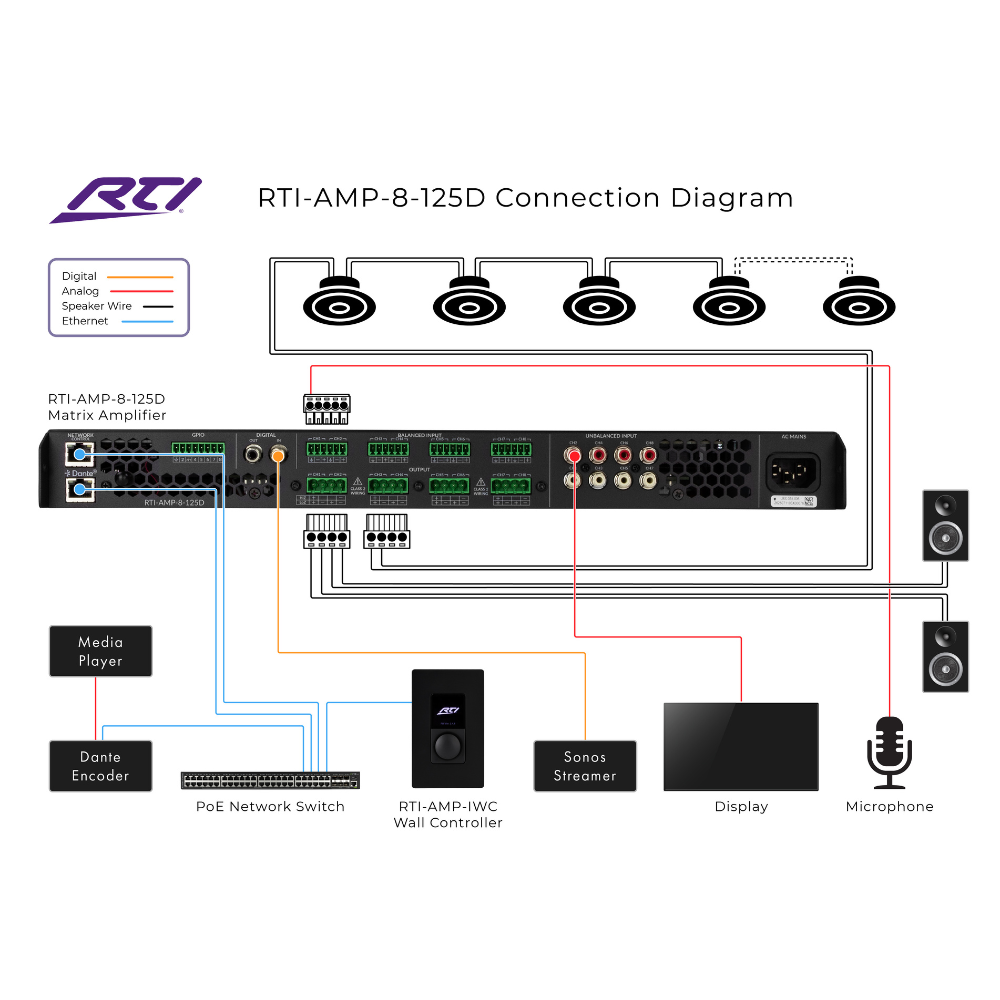

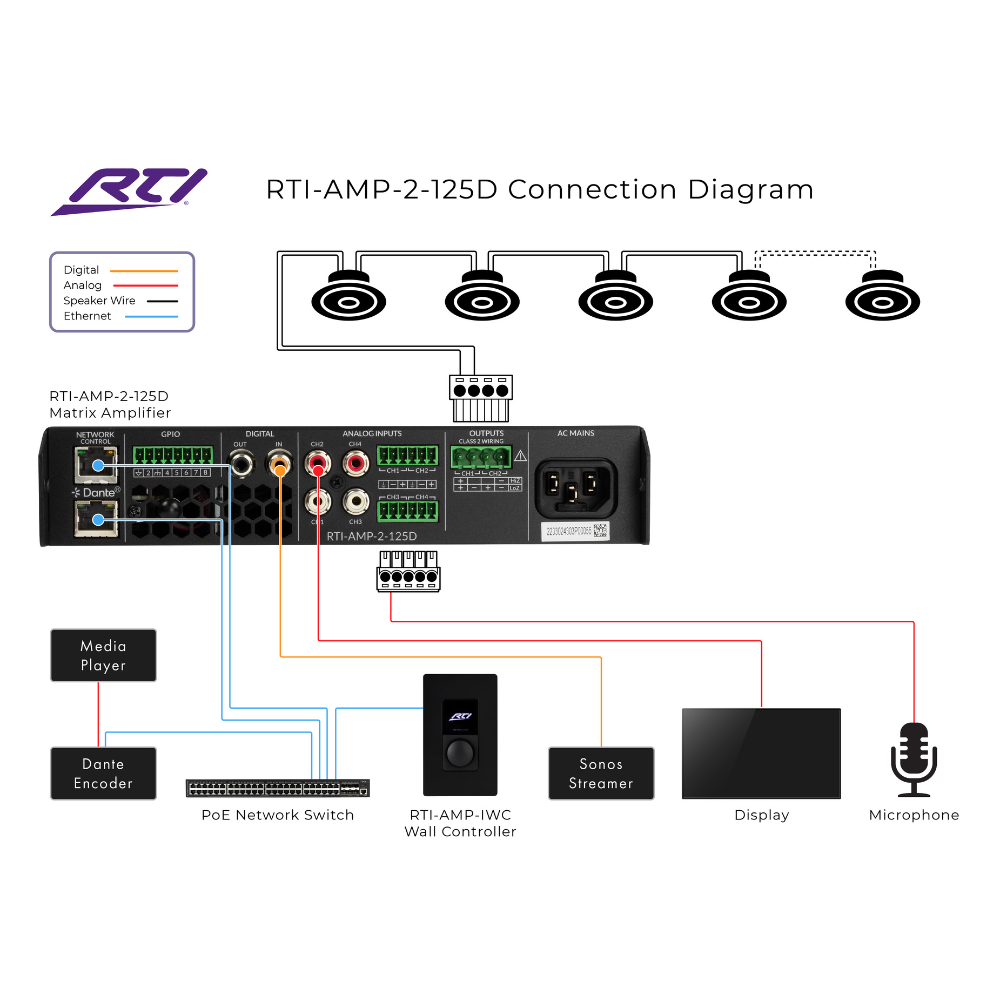

The RTI-AMP-IWC gives any room in a multi-zone installation a physical, wall-mounted control point for volume and source selection, without the cost or complexity of a full control system. Designed exclusively for the RTI-AMP Series, each controller mounts in a standard single-gang in-wall box and connects to the amplifier over a single Cat5e cable and any standard PoE switch, with power delivered over the same cable.

Each controller is assigned to one amplifier zone during setup through the browser-based web app. Once paired, the zone name, active source, and volume level appear on a bright 240 x 240 pixel color LCD, and a single tactile rotary encoder handles all interaction: turn for volume, tap for source, press and hold for settings. Up to eight controllers can be paired to one amplifier.

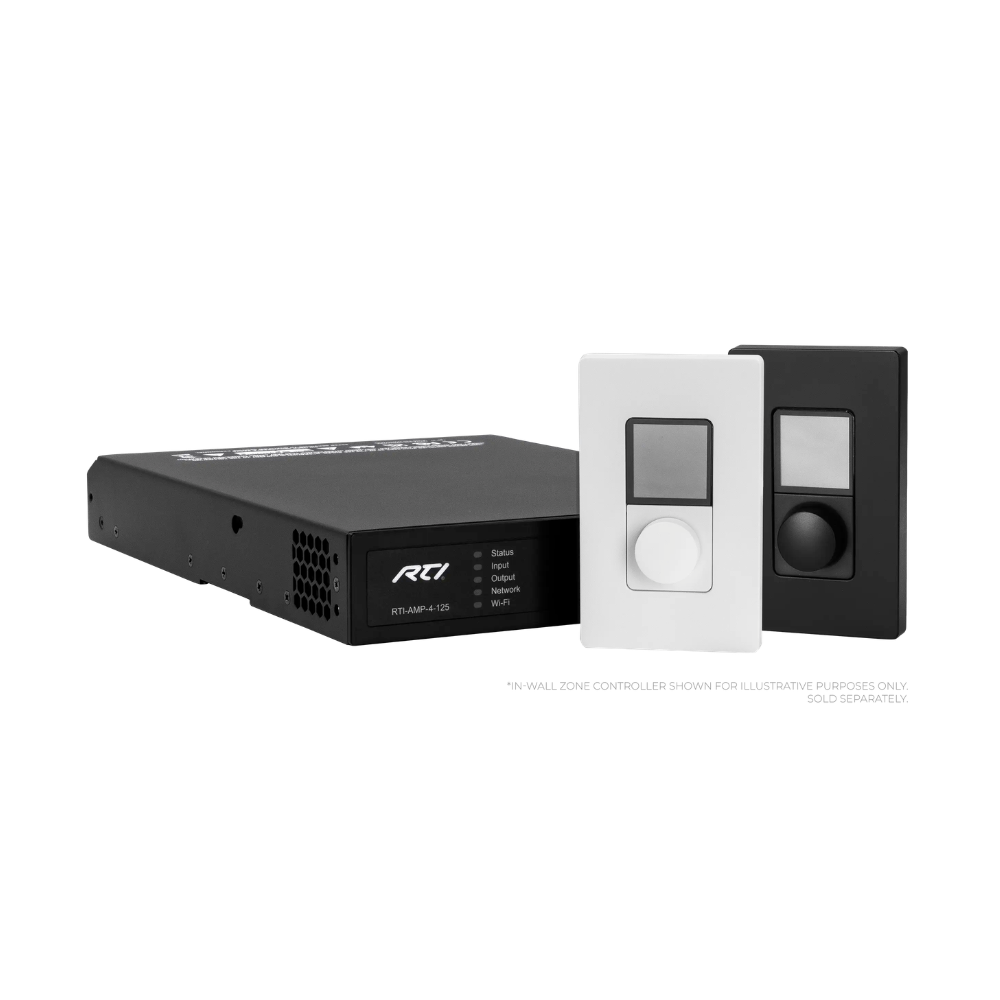

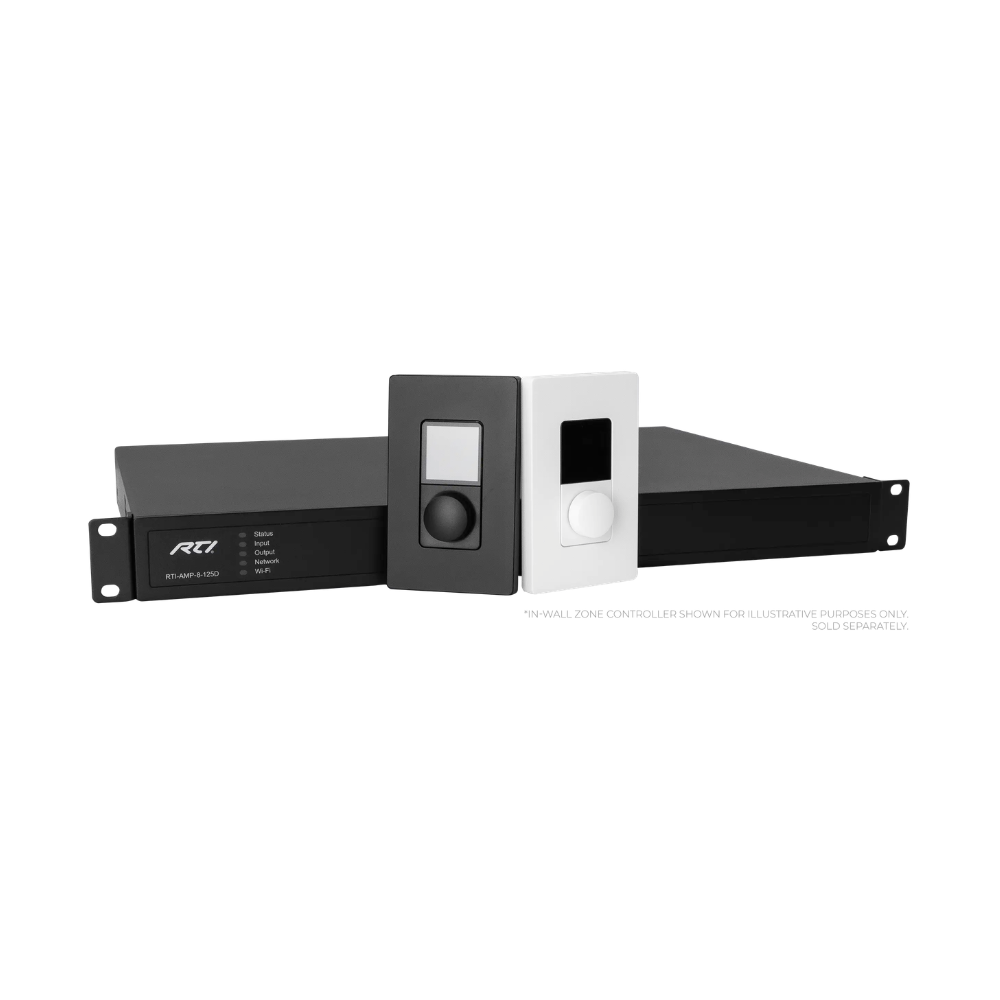

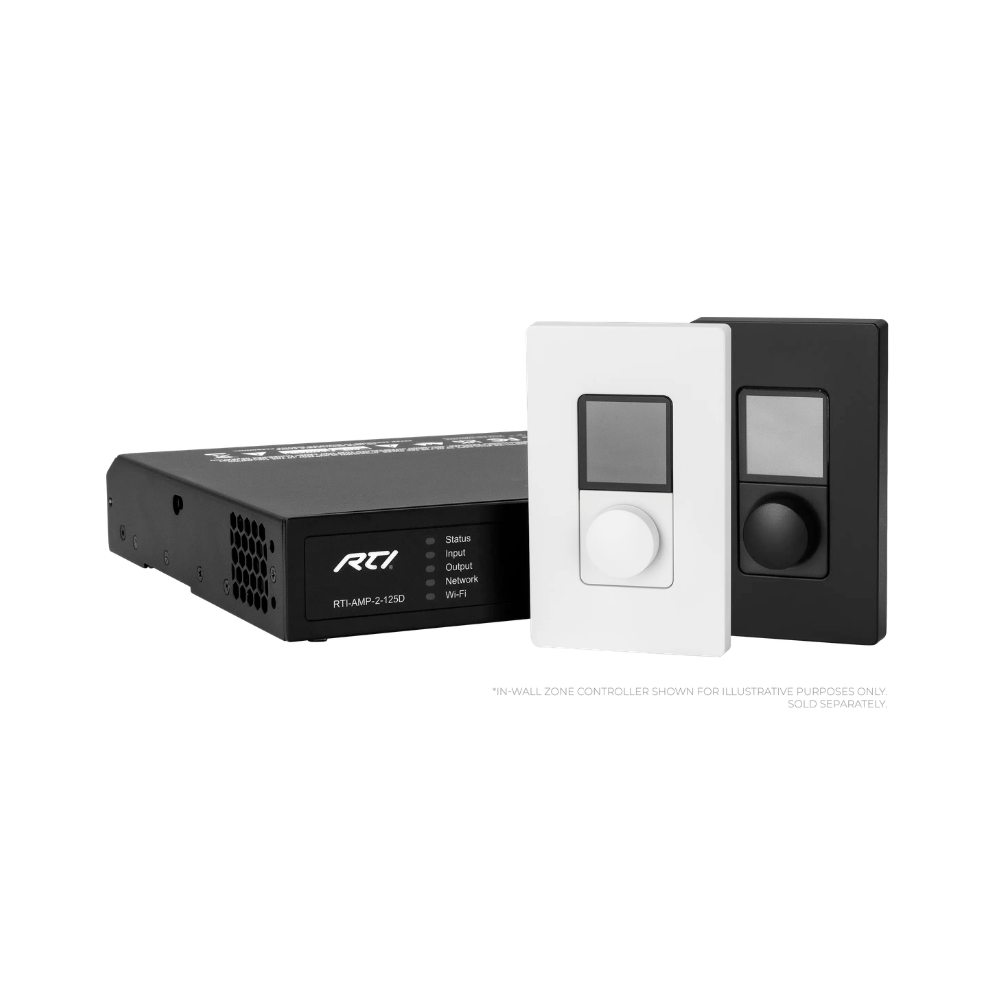

Optional three-level PIN protection prevents unauthorized changes in commercial spaces like restaurants, cafes, and retail, while per-zone volume range limiting protects speakers even when an untrained user is at the wall. Available in white and black to match standard commercial finish plates.

Key Benefits

Per-Zone Control, No Control System
Each controller pairs directly to an RTI-AMP amplifier zone over PoE, delivering a professional in-wall control experience using nothing more than a standard network switch and Cat5e cable. It fills the gap between a bare amplifier and a full RTI control system.
Tactile Rotary Encoder
A single control surface handles everything. Turn to adjust volume, tap to switch sources, press and hold to reach settings. An intentional, durable interface for commercial environments where touchscreens can be impractical or fragile.
Full-Color LCD Display
The 240 x 240 pixel screen shows zone name, active source, and volume at a glance, so users always know where they are and what is playing with no phone or app required.
PoE Power via Cat5e
A single cable delivers both data and power, eliminating separate power runs. Any standard PoE switch serves the entire system, keeping installation clean and cost-effective.
Zero-Programming Setup
Installers pair and configure each controller from the same browser interface used to set up the amplifier. No additional software, no drivers, no proprietary tools.
Three-Level PIN Protection
Settings Only, All Access, and Dual PIN modes let commercial environments restrict access at the right level, allowing volume control while preventing resets or configuration changes.
Volume Range Limiting
Enforced minimum and maximum levels per zone protect speakers from overpowering and keep audio appropriate for the space, even with an untrained user at the wall.
Smart Standby
Adjustable backlight brightness and configurable standby mode let the controller match any install aesthetic while extending display life during off-hours.
